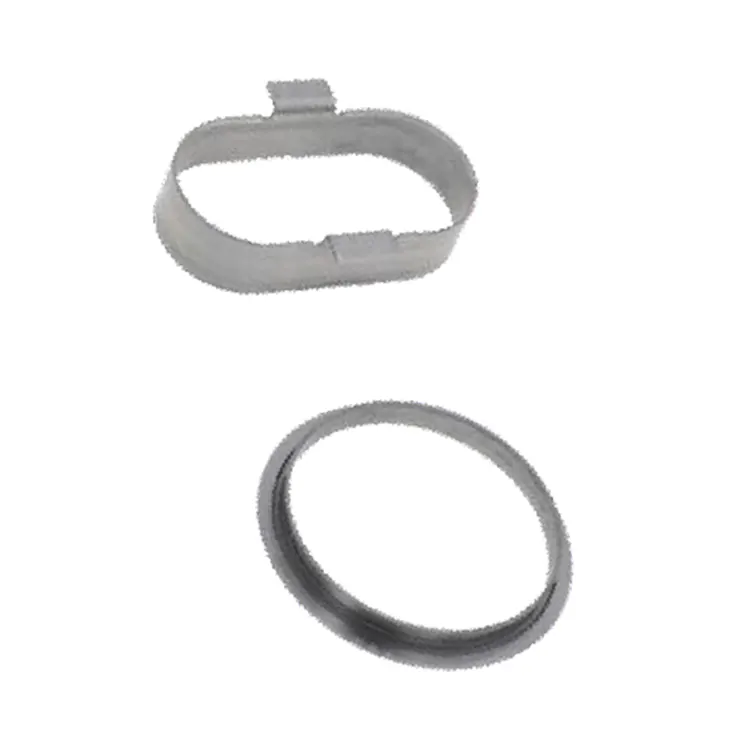

Deep Drawing

Custom Deep Drawing of Sheet Metal: Qingdao Difon Machinery Co., Ltd.

Qingdao Difon Machinery Co., Ltd. does custom Difon Deep Drawing of Sheet Metal. We make high-precision, complex shaped metal parts for industries like medical devices and automotive manufacturing. Businesses that need reliable deep drawing work trust us because we mix advanced techniques, know-how about materials, and tailored engineering solutions.

Difon Deep Drawing of Sheet Metal isn’t just shaping metal—it’s a precise craft. We turn flat sheet metal into seamless 3D parts, keeping wall thickness consistent, surfaces smooth, and structures strong. It’s trickier than standard stamping: you have to control how the material flows, design good tools, and manage pressure to avoid problems like wrinkling, thinning, or cracking. This is extra important for parts where depth is bigger than diameter. As a custom deep drawing provider, we fix these issues by matching our work to what each client needs. Whether it’s small, detailed medical instrument casings or large, heavy-duty industrial tanks, we focus on their specific requirements. This client-first approach has made Difon reliable—our parts fit right into end products, cut assembly time, and last longer.

Difon Deep Drawing of Sheet Metal process starts with checking materials closely. The right sheet metal makes all the difference for a good part. We use different materials based on how the part will be used:

For food-grade items like stainless steel kitchenware, we use 304 stainless steel. It resists corrosion and stays smooth even after multiple drawing steps.

For automotive fuel tanks or hydraulic reservoirs, we pick low-carbon steel. It’s super ductile so it doesn’t tear during deep drawing.

For lightweight aerospace parts, we use 5182 aluminum alloy. It’s easy to form, strong for its weight, and perfect for thin-walled parts that still need rigidity.

Before we start production, we test every batch of material—checking tensile strength, yield point, and grain size. This past quarter, we rejected a batch of DC04 steel because its grain size was too big; using it would have caused thinning in the drawn parts. This careful material prep is key to our custom Difon Deep Drawing of Sheet Metal service—it really cuts down defect risks.

We stand out from competitors in tooling design too. We make our own dies in-house. First, we use CAD software and finite element analysis (FEA) to simulate the deep drawing process before building the actual die. This simulation helps us see how the material will flow, find spots where stress might build up, and adjust die settings—like punch radius, die clearance, and how hard we hold the blank. For example, when we made a cylindrical part with a 10:1 aspect ratio, our FEA showed uneven pressure on the blank holder was making the bottom 20% of the part too thin. We adjusted the holder to push 10% harder on the outer edges of the sheet, and finally got uniform wall thickness all over. We use different die materials for different production sizes: HSS dies for small batches to save cost, and carbide dies for large batches because they don’t wear out as fast—so parts stay consistent. This tooling precision lets us handle complex shapes, like parts with flanges, necks, or multiple cavities, all with tight size tolerances.

Our Difon Deep Drawing of Sheet Metal process is better because of our advanced equipment and real-time monitoring—even for super complex parts. We have hydraulic and mechanical presses from 50-ton to 500-ton capacity. Each has servo-driven systems to control ram speed and pressure precisely. Our 300-ton hydraulic press, for example, has a closed-loop feedback system. It adjusts pressure in 0.1kN steps while drawing, so the material doesn’t stretch too much. For parts that need multiple drawing steps like turning a flat sheet into a deep cup, we use a transfer press with automatic part handling. This keeps parts aligned between steps and cuts down on human error. During production, we monitor key things nonstop: we use ultrasonic gauges to check wall thickness at three points on each part, and laser profilometers to make sure surface roughness is ≤0.8μm, this is important for parts that need plating or painting later. For parts used in high-pressure situations like hydraulic cylinders, we also do hydrostatic testing—we press them with 1.5 times their maximum operating pressure to make sure they don’t leak. All this equipment and checking means every part from our custom Difon Deep Drawing of Sheet Metal service meets or beats what clients ask for.

We’ve proven our custom Difon Deep Drawing of Sheet Metal skills with projects across different industries. In medical devices, we worked with a diagnostic equipment maker to make small stainless steel sample cups. These cups needed a mirror finish to stop sample contamination. We used a 5-step drawing process, controlling each step carefully to avoid tiny cracks that could trap residue. After production, every cup passed a visual check and a chemical resistance test—we left them in 70% ethanol for 24 hours, and there was no corrosion. They liked the results so much we signed a long-term supply contract. In automotive, we made an aluminum alloy oil sump for a hybrid car. It had built-in ribs for strength and a complex flange to seal well. The part needed a 4:1 drawing ratio, which meant we had to control material flow perfectly to avoid thinning around the ribs. We fixed this with a custom die and small pressure adjustments. After making it, we tested the sump through temperature cycles (-40℃ to 120℃)—it didn’t deform at all, meeting the client’s 10-year durability requirement. These projects show we can adapt our Difon Deep Drawing of Sheet Metal skills to different industries’ needs.

Our commitment to custom Difon Deep Drawing of Sheet Metal doesn’t end when we ship parts—we help clients through the whole process. We offer Design for Manufacturability advice: our engineers work with clients to tweak part designs so they’re easier to deep draw. For example, one client had a design with a sharp internal corner. Our DFM check showed this would probably cause cracks. We suggested changing the corner radius—this fixed the risk and kept the part working as needed, and it cut their production costs by 15%. Every order comes with detailed inspection reports—including size measurements, material certificates, and test results—so clients can trace every step.

As a top provider of custom sheet metal deep drawing, Difon Machinery Co., Ltd. uses technical skills, good equipment, and a client-focused approach to make high-quality, complex metal parts. Whether you need parts for medical devices, cars, consumer goods, or industrial gear, our Difon Deep Drawing of Sheet Metal services fit your specific needs—from picking materials and designing dies to production and post-processing. We care about precision, reliability, and new ideas, so Difon is your trusted partner for all deep drawing work. Want to talk about your project? Just reach out—we can walk you through how we’d make your parts.
