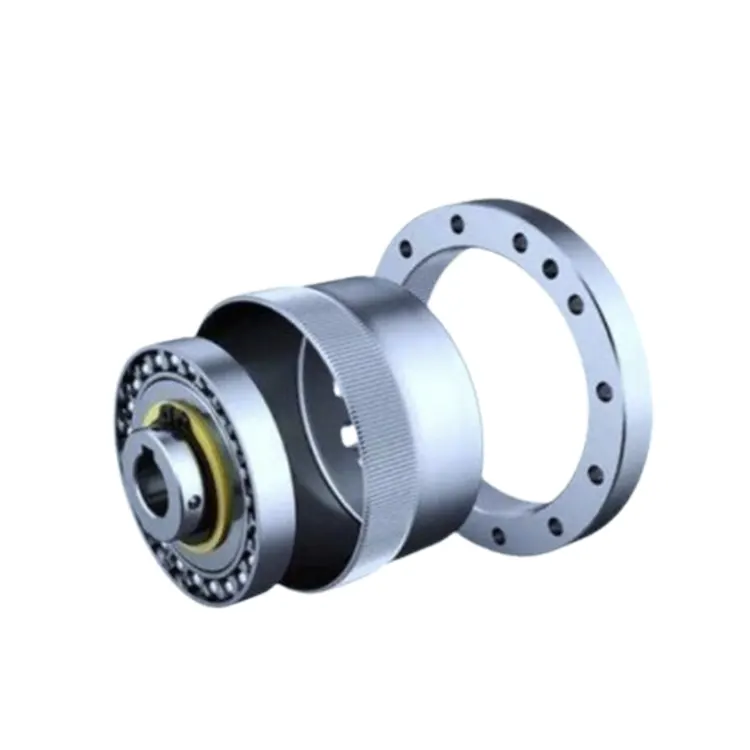

Harmonic Drive

Qingdao Difon Machinery Co., Ltd. – Trusted Harmonic Drive Supplier

For robotics innovators requiring unmatched precision in medical, industrial, or collaborative applications, Qingdao Difon Machinery is a trusted supplier of high-performance harmonic drives. Our service integrates scenario-specific material selection, flexible machining, and comprehensive technical support. That’s why robot makers trust us to make their robots more accurate, durable, and safe.

As a harmonic drive supplier with years of experience, we know harmonic drives serve as the 'precision backbone' of modern robotics, but their performance requirements vary dramatically across applications. For medical robots, they need to be super accurate to handle tissue carefully. They also have to be safe for contact with people and stand up to sterilization. For heavy industrial robots, tthey must withstand high torque loads and deliver over 15,000 hours of continuous operation. Most suppliers sell one-size-fits-all drives, but we tweak everything—from materials to surface treatment—to fit your exact needs. This way, our drives don’t just meet basic size rules—they fit right into your robot, cut downtime, and make the robot work better. This application-specific approach delivers the reliability required by leading medical device makers, industrial automation firms, and collaborative robot developers.

Our precision machining for harmonic drives starts with smart material choices that fix the unique problems of different robot environments. For medical robots, we use titanium alloy for key parts like the flexspline. The material is safe for contact with human tissue or fluids and it won’t break during long surgeries. To help it stand up to sterilization, we add a medical-grade passivation treatment to the titanium surface. Last quarter, we tested this on a batch—all drives still worked perfectly after the cycles.

For heavy industrial robots, we use a two-part material design: the flexspline is high-strength 30CrNiMo8 alloy steel, and we add a 0.1mm carbon fiber composite coating with electrophoretic deposition. This reduces component weight by 18% while increasing torsional stiffness by 25%—great for robots lifting 50kg+ without losing speed. For collaborative robots, we use Mg-Al-Zn-Ca alloy for the circular spline. It is lightweight and offers excellent vibration damping, which minimizes arm tremor. Precision is achieved through a machining process tailored to both the material and the drive's application, ensuring the performance your robotics design demands. For medical harmonic drives, we use ultra-precision grinding machines to finish the flexspline’s teeth. The tooth pitch error is ≤0.0015mm, and the surface is smooth. That’s critical—if the teeth are off by 0.002mm, the robot’s end tool might be off by 0.1mm, which could mess up surgery. We keep the workshop at 22±0.5℃ and 45±5% humidity, and use a magnetic levitation spindle to avoid vibration—vibration ruins precision.

For industrial drives, after machining the wave generator’s steel core, we do a low-temperature aging treatment. This cuts residual stress by 60%, so the drive doesn’t change size over time—important for robots in places with temperature swings. We also use an Olympus NDT 5800 laser ultrasonic tester to check every flexspline for small cracks—cracks can cause sudden failure under big torque.

For collaborative robots, we optimize the circular spline’s hobbing with a CNC hobber that adjusts feed rate in real time. It checks the material’s hardness as it cuts and changes speed to keep the teeth consistent. This makes the drive quieter when it runs—good for close work with people.

We don’t stop at making the drives—we test them thoroughly to fit your use case. For medical drives, we put them in a robotic laparoscope and ran 5000 small rotations. We checked accuracy with a Renishaw XL-80 laser interferometer, and they stayed under 0.05mm error—significantly exceeding the 0.1mm limit for surgery. We also ran ethylene oxide sterilization cycles and checked for harmful substances—none were found.

For industrial drives, we simulated 20,000 hours of use in a climate chamber that mimics factories. After testing, our drives only had 0.1 arcmin more backlash and no tooth wear. Most other drives have 0.5 arcmin more backlash and visible wear.

For collaborative robots, we tested what happens if a 5kg weight hits the drive at 0.5m/s . The drives kept 98% of their torque capacity and didn’t deform—they meet ISO/TS 15066 safety rules.

Our partnership extends beyond manufacturing to include design and engineering support, beginning with a collaborative review of your robot's requirements. Our engineers work with you to review your robot’s needs and suggest tweaks. For example, a client making a 5kg surgical robot had a flexspline design that was 1.0mm thick. We told them it would deform too much under load, so we suggested 1.2mm thick and titanium alloy. That boosted torque by 30% and kept the precision they needed.

At Difon, our goal is to provide the foundational components that enable you to build superior robots. Every harmonic drive is a step toward that goal. We understand what the robotics industry needs: precision for medical work, durability for industry, and safety for collaboration. We’re trusted by robot makers in 25+ countries, and we keep investing in new tech—like AI to predict drive maintenance and 3D printing for complex flexsplines. Whether you’re making a new surgical robot, an industrial one, or a collaborative robot, we have the skills to make harmonic drives that fit your needs and help you hit your goals.
