Tube Laser Cutting

Customized Tube Laser Cutting Service at Difon Machinery

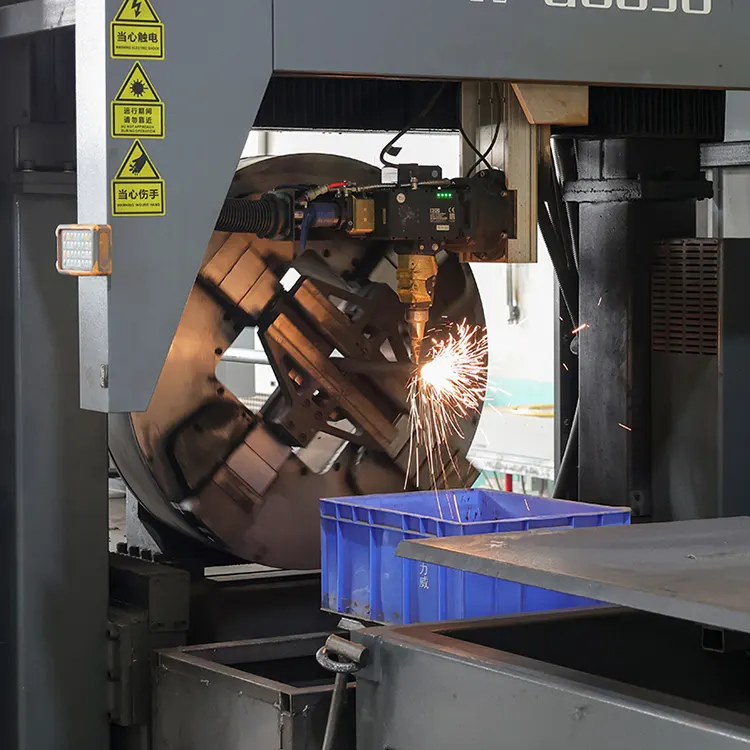

Conventional cutting methods often fall short when facing these precision challenges. Take a 360mm-diameter thick-walled carbon steel pipe, you see these a lot in heavy machinery. It needs enough laser power to get through the thick walls without warping from heat. Too little power, and the cut isn’t complete; too much heat, and the pipe loses its round shape. Meanwhile, a 20mm diameter aluminum tube for furniture demands extreme precision, where even a 0.5mm length variation across hundreds of units can result in wobbly chair legs. Similarly, tubes for fluid systems require beveled ends to make tight welds. Just 1° off, and fluid leaks. Lots of shops use manual or three-axis cutting machines for tubes. This often forces compromises in quality, such as limited bevel angles, inconsistent diameter cuts, or visible burrs inside the tube. But our custom Difon tube laser cutting work solves these issues. The 6000W laser has enough power to cut through thick 360mm pipes. The five-axis system lets us adjust bevels easily. And our high-precision chucks keep the tube spinning evenly while cutting ensuring perfectly circular cuts without deformation. The heart of our custom Difon tube laser cutting service is our 6000W Five-axis Groove Pipe Cutter. We’ve tuned it specifically for tubes 20mm to 360mm in diameter. Standard three-axis tube cutters can only do simple straight cuts or fixed-angle bevels. But our five-axis machine has two rotational axesthat work with the X, Y, Z linear axes. This lets the laser head tilt from 0° to 60°, so we can make complex bevels like V-bevels, U-bevels, and compound bevels. These are key for strong welds in engineering machinery. The 6000W fiber laser module is another critical advantage. It makes a focused laser beam with enough energy to cut 360mm-diameter carbon steel pipes at 0.8–1.2 meters per minute. It also handles thin 20mm aluminum tubes at 3–5 meters per minute, preventing heat damage to the interior surface. Our high-precision chuck system helps too: each chuck has three jaw clamps with adjustable pressure. This way, we don’t crush thin tubes or let thick ones slip. The servo-driven rotation keeps it accurate to ±0.02mm coaxiality so the tube spins smooth, no wobble, making sure the laser cuts along a nearly perfect circular path.

To make sure our Difon tube laser cutting service works for different industries, Our processes are precisely calibrated for all kinds of tube materials—each acts differently when cut. For example, carbon steel tubes need more laser power to melt through their high melting point. Aluminum tubes  need less power and nitrogen gas to stop rust. Our team has built material-specific settings—we write these down in a reference guide and adjust them for each project.

Achieving optimal results requires parameters tailored to each material. The table below details our standard capabilities, ensuring high-quality cuts across a wide spectrum of tubular materials:

Our custom Difon tube laser cutting also includes a design-to-cut tweak process. This makes sure your tube parts fit right into your assembly line—lots of shops skip this step, but it saves time and waste. When you send your CAD design files, our engineers first look over the design to spot possible cutting problems. For example, if a 200mm stainless steel tube needs a cutout near its end, we might change the cutting path to start from the tube’s inside to stop the tube from warping. Then we use tube cutting simulation software to test the process. The software models the tube spinning, the laser head moving, and how heat spreads. It flags issues like possible warping or uneven material removal. Once the simulation checks out, we do a “first-piece test”: we cut one sample tube, measure its size, check the bevel angle and test how it fits with your parts. Only when the sample passes all these checks do we start batch production, this strict step makes sure every tube in your order matches your design.

Quality checks for our Difon tube laser cutting go beyond just measuring size—we fix problems that only happen with tubes. It can trap debris and clog fluid systems. We catch that by sliding an industrial endoscope into the tube to check the inner walls. Also, for beveled tubes, we do a “weld test”: we weld a sample tube to a matching flange and test the weld’s strength with a tensile machine. This makes sure the bevel angle and cut quality let you make strong, leak-free joints. For big batches, we use SPC. We take 5% of the batch at regular intervals, measure key things like diameter, bevel angle, how smooth the cut edge is, and plot the data on charts to keep things consistent. If we see a change—like the bevel angle getting a little off—we adjust the machine right away. No bad tubes get sent to you.

The difference lies in a partnership that extends beyond delivery. We provide integrated support to ensure the cut tubes perform flawlessly in your production environment. For example, if you need your tubes deburred or coated after cutting, we can work with trusted partners to save you time. For complete traceability and quality assurance, every order includes detailed documentation: a “cutting report” with material batch numbers, machine settings, inspection results, and a traceability code. You can look up the tube’s production history anytime in our database. For clients who order regularly, we store your design files and settings in a dedicated database. This lets us start production within 48 hours of your order—cuts lead time a lot. You retain access to our technical team after delivery for guidance on welding parameters, corrosion prevention, and more.

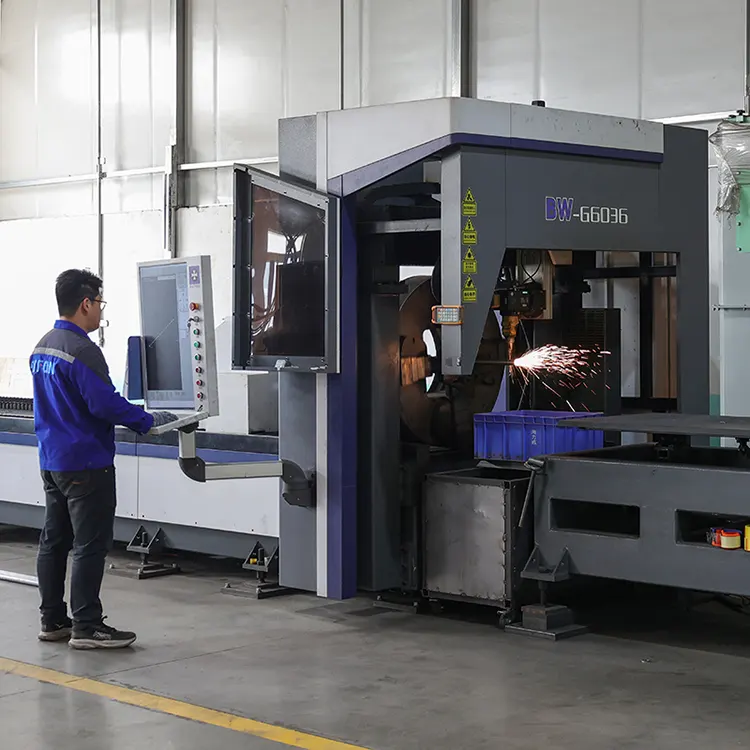

At Difon Machinery Co., Ltd., we think custom Difon tube laser cutting should be more than just cutting tubes. It should be a solution that makes your production easier, cuts costs, and improves your final product’s quality. Our 6000W Five-axis Groove Pipe Cutter, high-precision chucks, material know-how, and strict quality checks let us meet even the trickiest tube cutting needs from 20mm aluminum furniture tubes to 360mm carbon steel hydraulic pipes. Whether you’re designing a new product line or ramping up production, we’re ready to be your trusted partner for tube laser cutting. Contact our team today to talk about your tube part needs, ask for a sample cut of your design, or schedule a visit to our facility. You can see our 6000W Five-axis Groove Pipe Cutter in action and learn how we can tailor our work to your industry.
